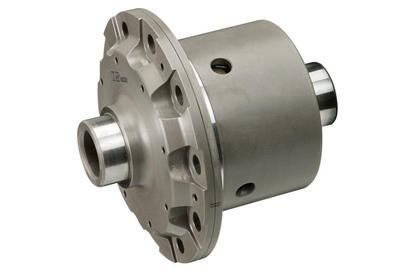

OS Giken PDK Super Lock LSD Porsche 997 Twin Turbo Cayman S

***please contact us to check for product availability and lead time***

The OS Giken Super Lock LSD uses their patented pressure ring design that allows for smooth, progressive locking. This design is a spline-through-side-gear design that allows for fitment of more friction plates (up to 2x as many as competitors versions).

• All components are chemically heat treated for maximum durability
• All components are constructed from a high-grade steel alloy
• Gears are raw-forged for maximum strength
• Clutch disks are precision-machined simultaneously on both sides to extremely tight tolerances resulting in minimal warpage.
• LSD case is machined from a single billet piece to ensure uniformity.

The OS LSD standard spec allows for low preload while still retaining a fully progressive 100% lock capability. Operation is quiet and the progressive locking allows for smooth predictable locking. When replacing an open diff, equipping an OS LSD will completely improve the driving experience while maintaining everyday drivability.

***Reuse OEM Side Bearings*** Porsche does not sell the side bearings separately and currently there are no replacements in the aftermarket.

Fitment:

• Porsche 997 (Twin Turbo) Cayman PDK

• 991 PDK (09'-15' OPEN DIFF Only)

• Differential Bearing to Bearing Measurement 85.7mm

Specification

• Ramps - 25/45
• Lock Timing - 224
• Total TCD Plates - 12
• Preload - 6S
